Punch Glazed Roller Shutter

Birmingham Garage & Industrial Doors have been manufacturing, supplying, and installing Industrial, Commercial, and Security doors, for more than 43 years.

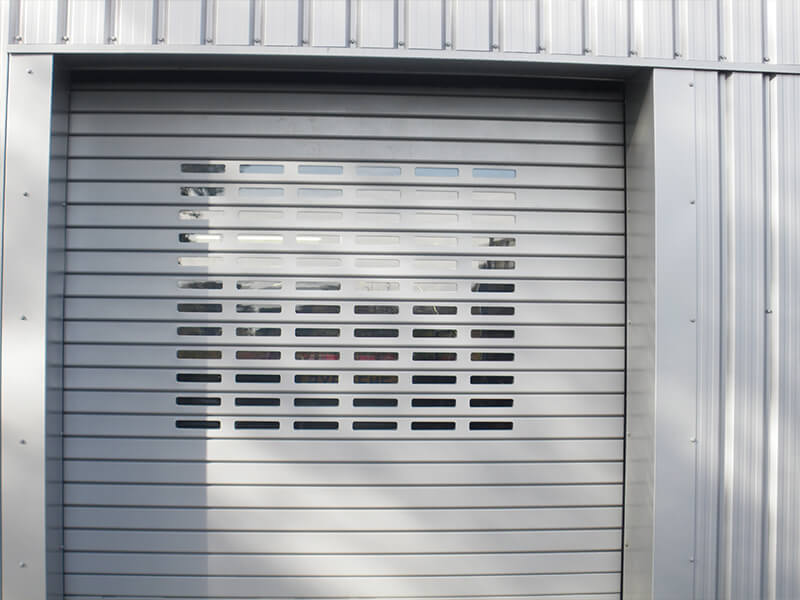

Punched and glazed roller shutter

This roller shutter door is made with an aluminium lath that has been punched and glazed. This design allows for more flexibility in the shop front's appearance and layout, as the level of glazing in the shutter curtain area can be increased or reduced as desired. Compared to other types of shop front shutters that use galvanized steel lath, this roller shutter door is considered to have a more attractive appearance.

Punched & Glazed Roller Shutter Door Set Specification:

  • Curtain: 90 mm. deep high quality extruded aluminium bottom rail 82 mm. deep x 60 mm. wide complete with a neoprene weather strip.
  • Punching: Can be solid, but more usually, punched as follows – in-line & brick bond – 152 mm. wide x 59 mm. high double in-line – 330 mm. wide x 59 mm. high
  • Glazing: Achieved by using 2 mm. thick polycarbonate
    Guide Channels: 65 mm. deep x 45 mm. wide aluminium complete with 3 no. hard-wearing glide strips to each side.
  • Canopy / Fascia: Manufactured from 0.9 mm. (20g) galvanised sheet steel folded and formed to enclose head plates and barrel assembly.
  • Operation: Manually through counter balanced spring barrel operated by gear cranked mechanism, or electrically by single phase tubular mounted motor, complete with fail-safe safety brake and anti-drop mechanism, and with a variety of low voltage controls.
  • Finish: Either mill finish aluminium, anodised finish or more popularly, fully factory powder coat paint finished to RAL standard colour
