Bar Grilles and Servery

Birmingham Garage & Industrial Doors have been manufacturing, supplying, and installing Industrial, Commercial, and Security doors, for more than 43 years.


Throughout this period, BGID has amassed a wealth of experience and expertise in the industry, which has enabled us to provide high-quality products and services to our clients.

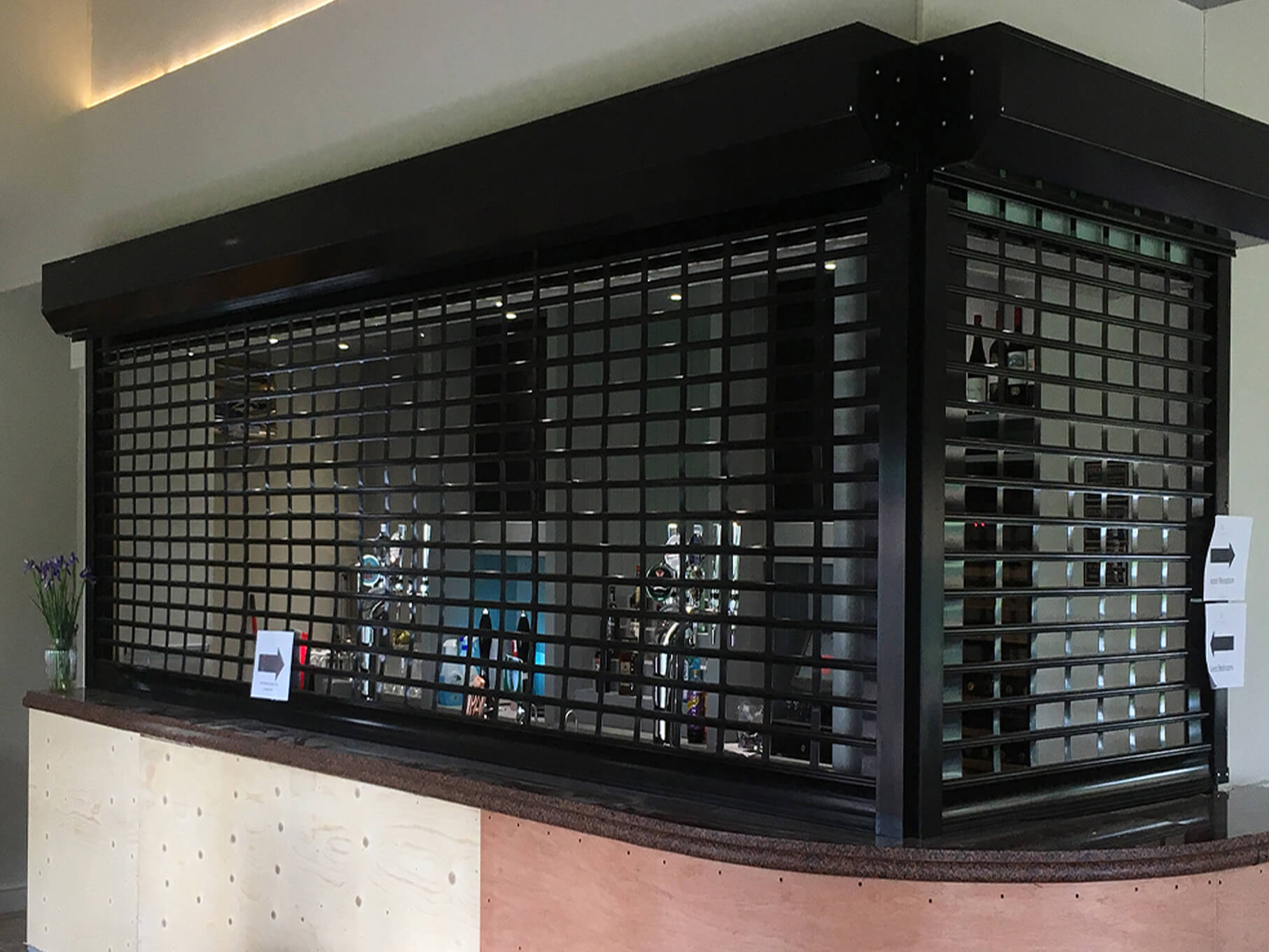

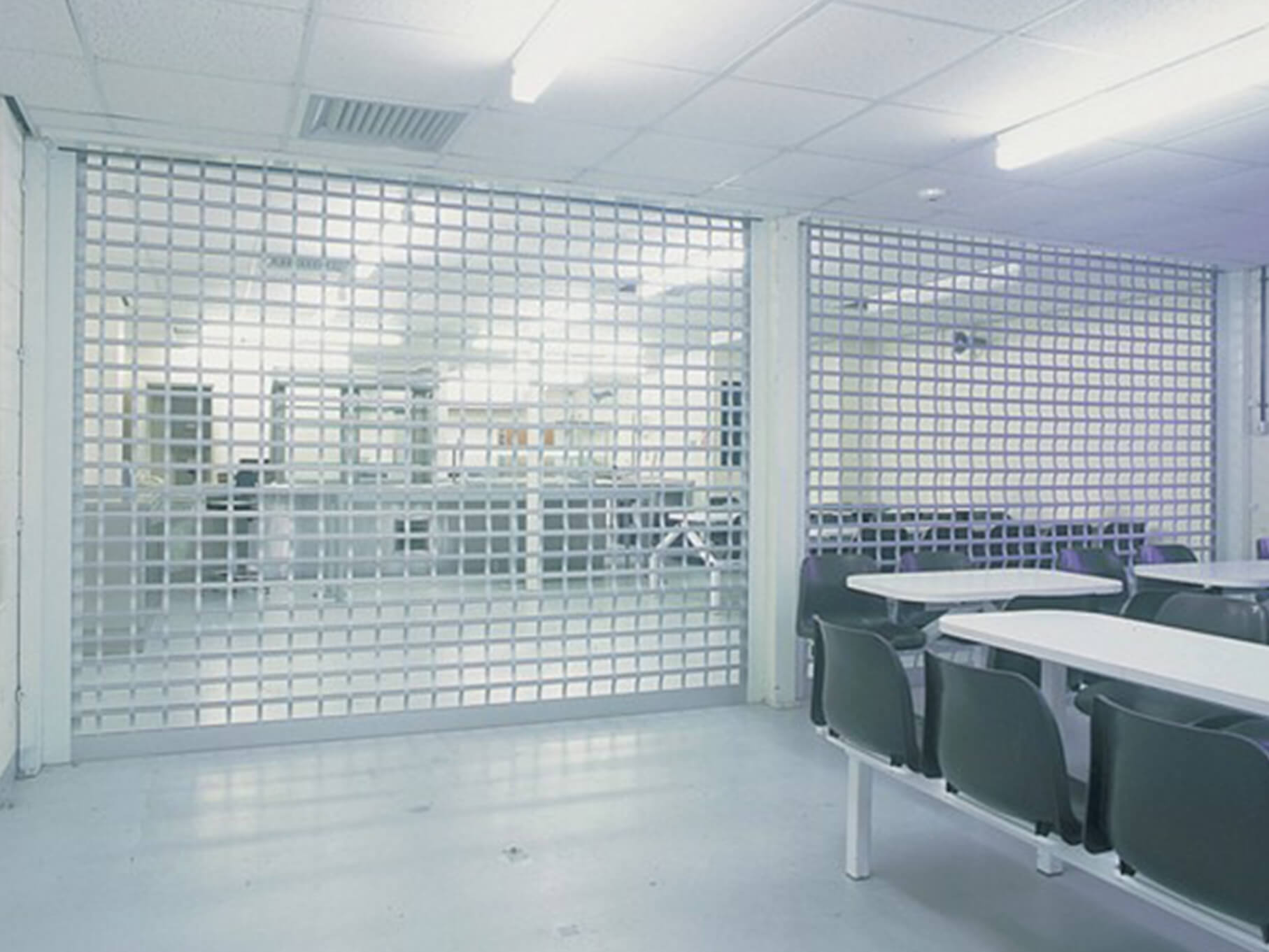

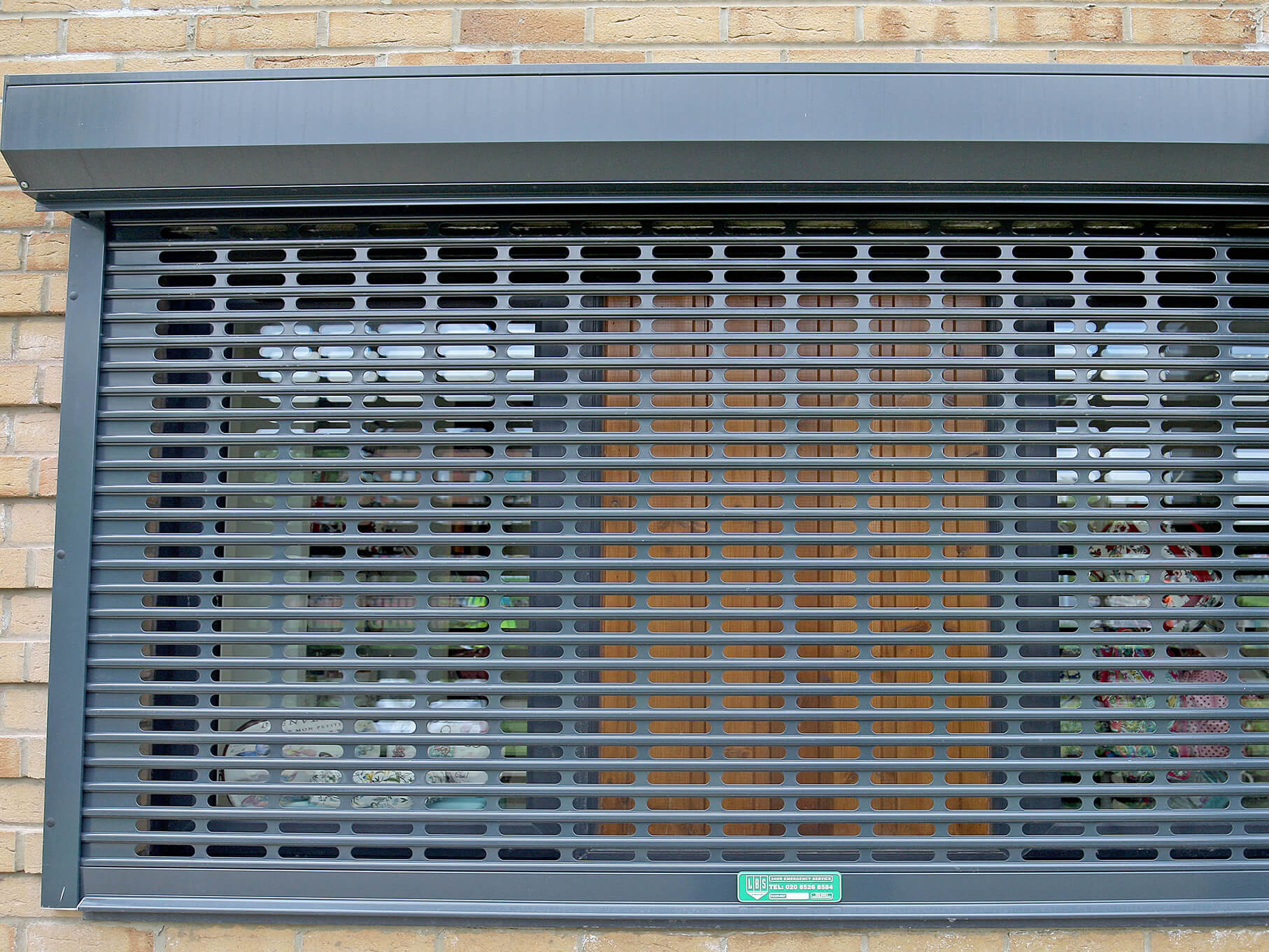

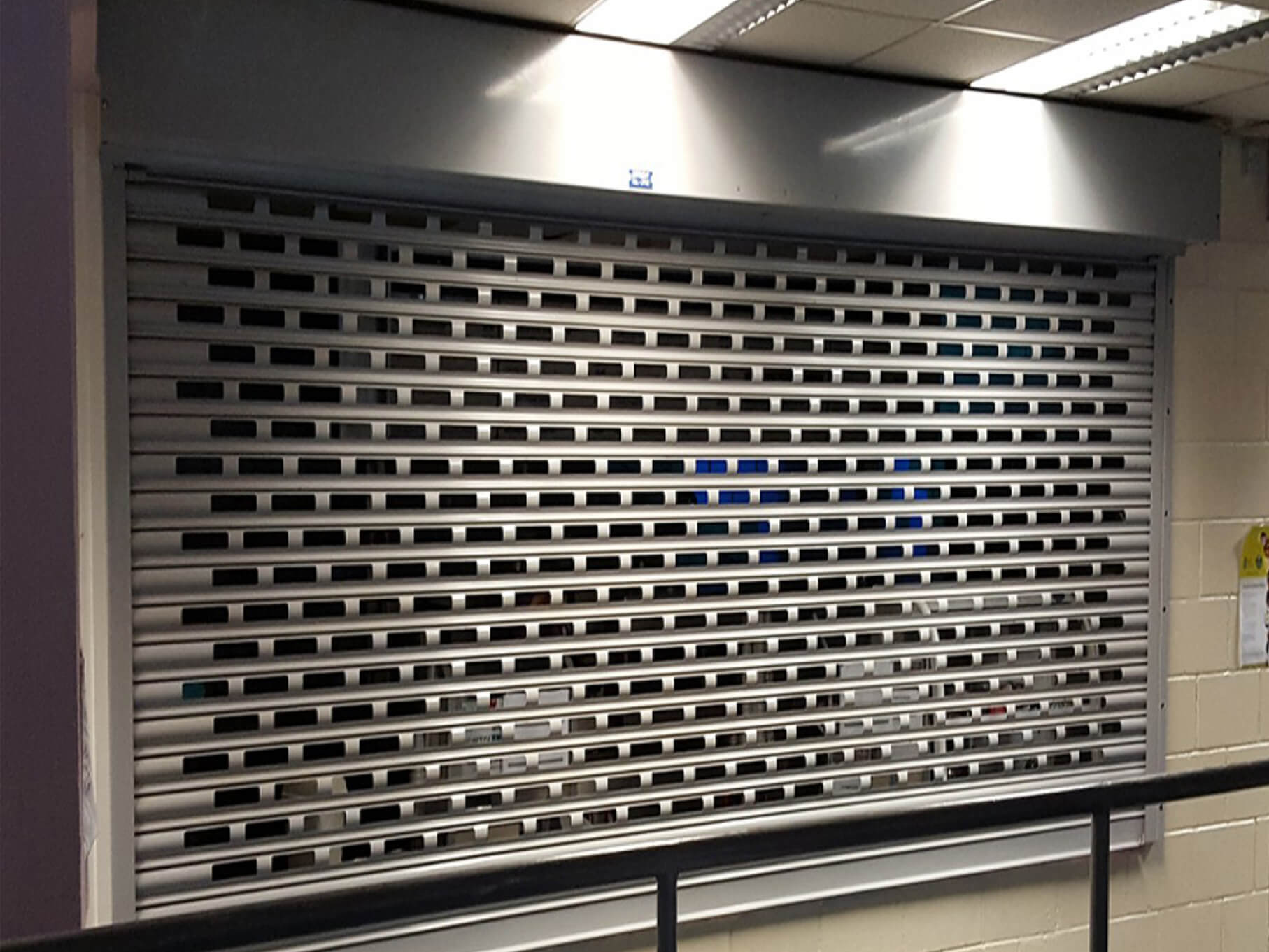

Bar grilles and servery shutters are both engineered to provide both aesthetic appeal and adequate security by creating a visibly imposing barrier. Their design ensures that they are not only functional, but also visually appealing.

Bar Grilles and Servery Set Specification:

  • Curtain: Injection moulded links to create a cruciform pattern of 71 mm x 76 mm. centres, with white injection moulded nylon lath retainers fixed to alternate laths covering the full shutter curtain height.Or – constructed from 10 mm. x 78 mm. aluminium tubes and 12 mm. x 60 mm. links to form a 160 mm. x 50 mm. brick bond pattern.Alternatively – constructed from 13 mm. x 110 mm. aluminium tubes and 16 mm. x 75 mm. links to form a 228 mm. x 65 mm. brick bond pattern.
  • Operation: Manually, by counter balanced spring loaded barrel – push up, pull down action. Electrically, by single phase tubular motor unit, complete with fail safe safety brake and anti-drop mechanism, hand crank manual over-ride for use in the event of a power failure, and with a variety of low voltage control systems.
  • Finish: Injection moulded links are generally white, whilst aluminium tube and link grilles can be left mill finish or supplied fully factory powder coat paint finished to RAL standard colour.
